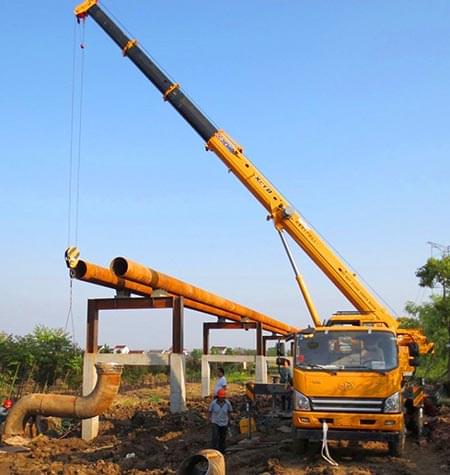

XCMG truck  crane XCT8L4 Lifting with a single dual-pump automatic switching function, good micro-mobility, while high efficiency, covering competitors; telescopic, luffing speed using large displacement pump, high efficiency.The new appearance, full cover to take the platform, the whole ergonomic design, bringing a new user experience.Two bridge common chassis, Dongfeng and FAW two configurations, flat head cab, with sleeper function, driving comfort.


Dimension

Unit

XCT8-L4

Overall length

mm

9375

Overall width

mm

2400

Overall height

mm

3240

Weight



Total weight in travel

kg

12300

Front axle load

kg

4150

Rear axle load

kg

8150

Power



Engine model


Dongfeng 1810/1800

Engine rated power

kW/(r/min)

1810/1800

Engine rated torque

N.m/(r/min)

430/(1300~1600)

Travel



Max. travel speed

km/h

90

Min. turning diameter

m

16

Min. ground clearance

mm

260

Approach angle

°

18

Departure angle

°

13

Max. grade ability

%

35

Fuel consumption for 100km

L

18

Main performance



Max. rated total lifting capacity

t

8

Min. rated working radius

m

3000

Turning radius at turntable tail

m

2.327

Max. load moment

kN.m

302

Base boom lifting height

m

8.5

Fully extended boom lifting height

m

26.5

Fully extended boom+ jib

m

26.5

Longitudinal outrigger span

m

4.3

Lateral outrigger span

m

4.7

Working speed



Boom elevating time

s

40

Boom full extension time

s

150

Max. swing speed

r/min

2.5

Max. speed of main winch (single rope) (no load)

m/min

125

Max. speed of aux. winch (single rope) (no load)

m/min

125
