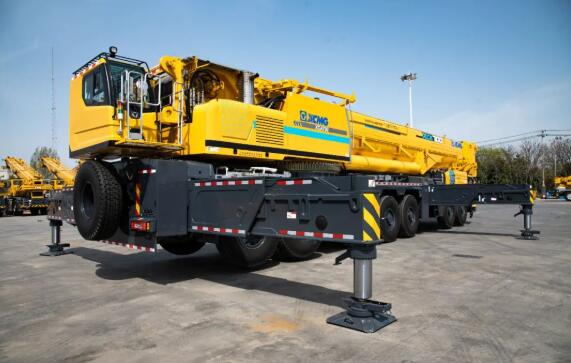

The lifting performance of XCMG all-terrain crane XCA700: the length of the full outrigger is 90.5m, the super-long main boom, and the lifting moment reaches 2100t.m.

Bridge condition: arm length 51m, width 20m, lifting capacity 95t.

Wind power working conditions: 80m wheel hub center height, 100t lifting capacity, covering 80-100m wind power maintenance project.

Super one-key tensioning technology: realize one-key tensioning and one-key unlocking, the program is more intelligent and safer, and the expansion efficiency is increased by 30%.

Super-lifting multi-mode working conditions: the weight can be lifted without tension or dismantling, reducing more disassembly and transportation costs.

Dual-engine (220kw on/off 485kw), seven-axle five-wheel drive all-terrain chassis.

The whole machine can be equipped with a main boom, super-lifting and heavy-load transition, with a super-lifting height of 4.2 meters, stronger transition ability, and can pass through lower culverts.

The power system of the vehicle is equipped with a high-performance disconnect device to improve the ability to start at ultra-low temperature.

Super large H-shaped outrigger span, three spans (1.0, 0.75, 0.5) combination, super-rise 35〫, 25〫, 15〫 three deployment angles, better adaptability to narrow venues.
